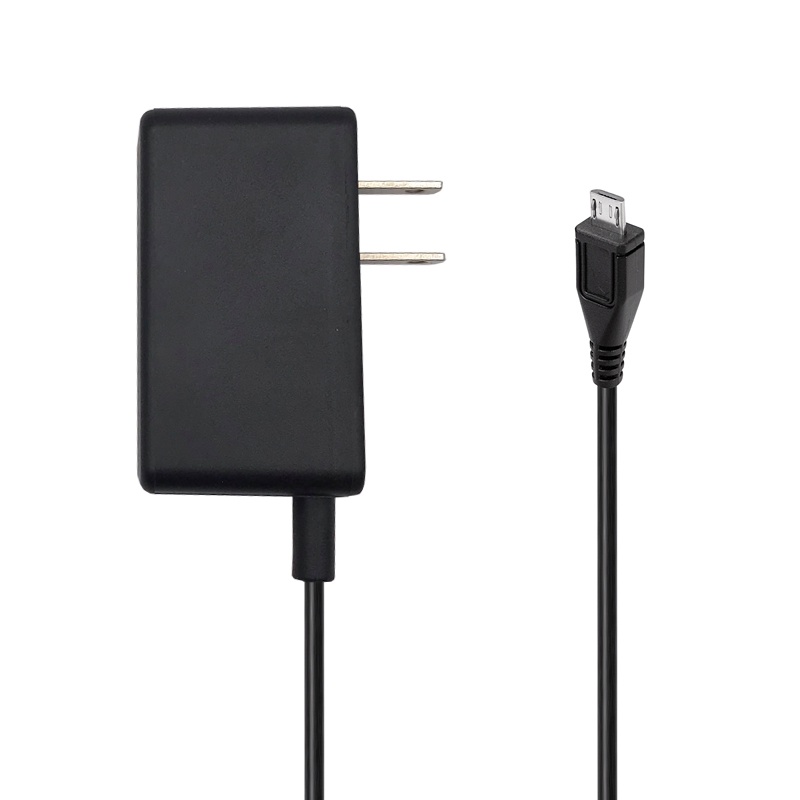

Product name : Raspberry pi 3 Power Supply US

Product No. : FY-PS-033

←[Previous Product] [Next Product]→

Details:

Electrical Specification
Universal Input	100-240V AC 50/60Hz
Suitable Voltage/Frequency	90-264V AC 47/63Hz
Output	DC5V/5.1V/5.2V/5.25V/5.3V---3A
Voltage regulation	3%~5%
Efficiency	90%
Ripple/Noise	<100MV
Certificate	UL FCC CE ROHS TUV SGS SAA KC PSE CB
Operation & Storage Condition	Operation Temp.	0°C to 40°C (At Max.load)
	Operation Humidity.	10% to 90% RH (Non condensing)
	Storage Temp.	-20°C~75°C
	MBFT	>50,000 hours
Protection Function	Over voltage protection Over current protection Short circuit protection
Mechanical Specification
Dimension	L75* W40* H30mm
Color	White/Black
AC Wall plug type	EU,US,UK,AU
DC Cable Length	1m/1.2m/1.5m/1.8m/2m/2.5m/3m or customized length
DC Jack (Plug)	Micro usb connector
